An aluminium manhole cover, complete with a screw-on base and EPDM rubber seals secured to the frame. Supplied with a reinforcing mesh and 4 keys/handles.

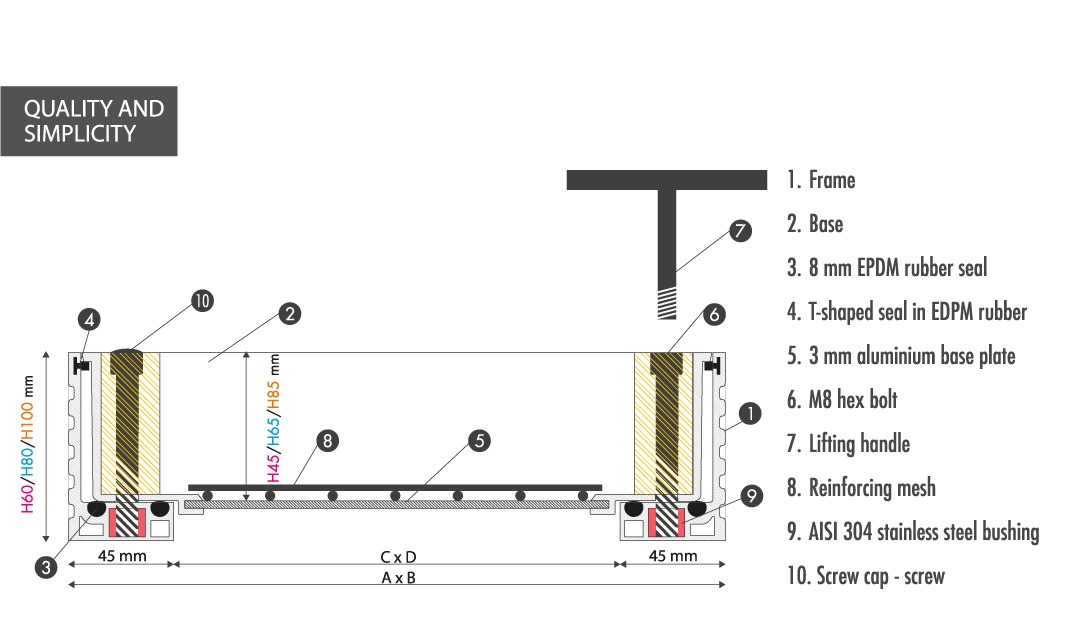

ALU-TECH is the innovative manhole cover model with the most advanced performance and technology in the Baldassar range. Due to the fact that it is made of extruded aluminium and boasts waterproof and odour-proof properties, it is light and easy to handle. Furthermore, it has been designed to house the special EPDM rubber seals which are stressed by means of being anchored to the base via the four fixing points, to make the product truly unique.
The standard kit includes four lifting handles and an Allen key to make it easier to install and re-secure the base in the frame.
The ALU – TECH range is available in three different heights: 60 mm – 80 mm – 100 mm.
H 60
| Code | Frame size | Clear opening (mm) | Weight (kg) |
|---|---|---|---|
| 06400300 | 300x300 | 210x210 | 3,62 |
| 06400400 | 400x400 | 310x310 | 5,09 |
| 06400500 | 500x500 | 410x410 | 7,13 |
| 06400600 | 600x600 | 510x510 | 8,82 |
| 06400700 | 700x700* | 610x610 | 11,72 |
| 06400800 | 800x800* | 710x710 | 14,18 |
| 06400900 | 900x900* | 810x810 | 17,00 |
| 06401000 | 1000x1000* | 910x910 | 20,25 |
| Maximum load capacity: 60kN in case of filling with concrete of at least 4 cm up to size 600 x 600, 40 kN from size 700 x 700 to 1000 x 1000 *Available on request |
|||
H 80
| Code | Frame size (mm) | Clear opening (mm) | Weight (kg) |
|---|---|---|---|
| 06410300 | 300x300 | 210x210 | 4,05 |
| 06410400 | 400x400 | 310x310 | 5,62 |
| 06410500 | 500x500 | 410x410 | 7,80 |
| 06410600 | 600x600 | 510x510 | 9,62 |
| 06410700 | 700x700* | 610x610 | 12,87 |
| 06410800 | 800x800* | 710x710 | 15,24 |
| 06410900 | 900x900* | 810x810 | 18,30 |
| 06411000 | 1000x1000* | 910x910 | 21,59 |
| Maximum load capacity: 60kN in case of filling with concrete of at least 4 cm up to size 600 x 600, 40 kN from size 700 x 700 to 1000 x 1000 *Available on request |
|||
H 100
| Code | Frame size (mm) | Clear opening (mm) | Weight (kg) |
|---|---|---|---|
| 06420300 | 300x300 | 210x210 | 4,65 |
| 06420400 | 400x400 | 310x310 | 6,12 |
| 06420500 | 500x500 | 410x410 | 8,66 |
| 06420600 | 600x600 | 510x510 | 10,68 |
| 06420700 | 700x700* | 610x610 | 13,91 |
| 06420800 | 800x800* | 710x710 | 16,88 |
| 06420900 | 900x900* | 810x810 | 20,00 |
| 06421000 | 1000x1000* | 910x910 | 23,51 |
| Maximum load capacity: 60kN in case of filling with concrete of at least 4 cm up to size 600 x 600, 40 kN from size 700 x 700 to 1000 x 1000 *Available on request |
|||
Fixing screws
Lifting handle
