Heavy Manhole Cover (H 65)

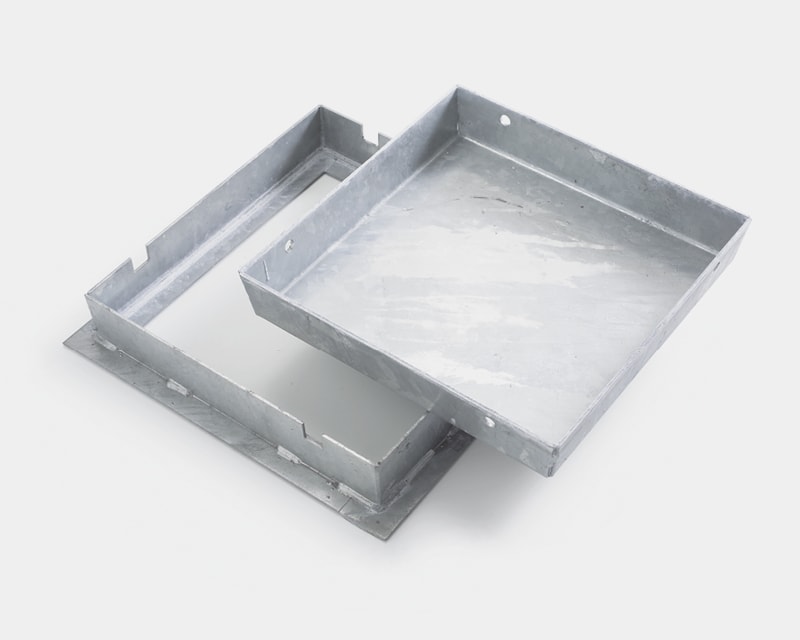

40/10 thick hot dip-galvanised sheet metal manhole cover with a 30/10 thick T-shaped frame and central holes for lifting.
Code | Code with Euroclipper | Frame size (mm) | Clear opening (mm) | Weight (kg) |
---|---|---|---|---|
06130300 | 06130300E | 300 x 300 | 250 x 250 | 7,70 |
06130350 | 06130350E | 350 x 350 | 300 x 300 | 9,25 |
06130400 | 06130400E | 400 x 400 | 350 x 350 | 12,80 |
06130450 | 06130450E | 450 x 450 | 400 x 400 | 14,78 |
06130500 | 06130500E | 500 x 500 | 450 x 450 | 17,50 |
06130550 | 06130550E | 550 x 550 | 500 x 500 | 18,95 |
06130650 | 06130650E | 650 x 650 | 600 x 600 | 24,57 |
06130750 | 06130750E | 750 x 750 | 700 x 700 | 30,80 |
All manhole covers are empty formworks which are then filled with material; this material has a fundamental influence on their capacity. The capacity guarantee can therefore only be provided by the fitter who is responsible for the material used to fill the manhole. Baldassar Gratings underlines the good practice of filling manhole covers with at least 2-3 cm of suitably reinforced concrete. |
Handle for lifting manhole covers with pre-drilled side holes (code: 06270001)
