Lock manhole cover (H 50) with the EUROCLIPPER® handle
10-12/10 thick pre-galvanised sheet metal manhole cover with a 12/10 thick frame, complete with an extruded EPDM rubber E-profile seal that does not deform when subject to atmospheric agents, thus, guaranteeing constant adherence over time. Comes with a pre-drilled central hole for lifting via the Euroclipper® handle. Powder-coated with RAL 7035 light grey-coloured polyester resins.

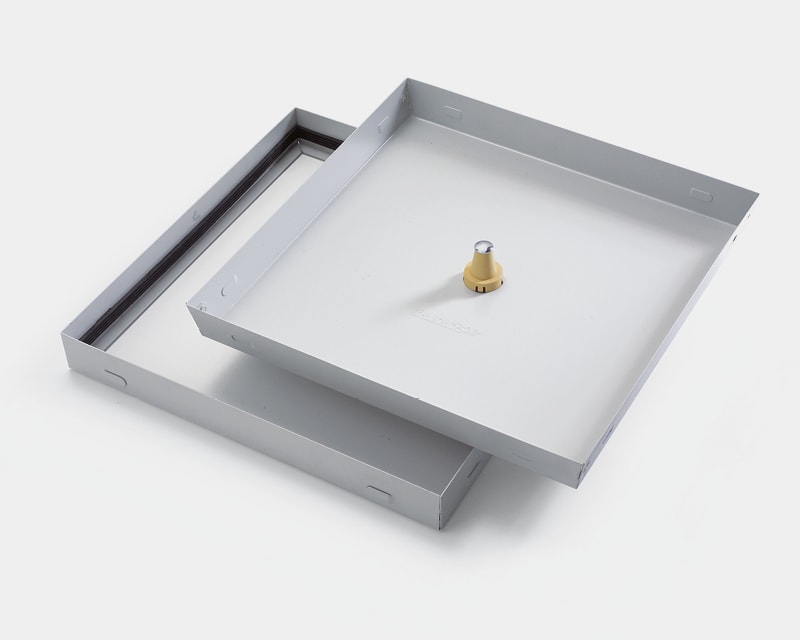

Lock manhole cover (H 50) with the lifting screw
10-12/10 thick pre-galvanised sheet metal manhole cover with a 12/10 thick frame, complete with an extruded EPDM rubber E-profile seal that does not deform when subject to atmospheric agents, thus, guaranteeing constant adherence over time. Comes with a pre-drilled central hole for lifting via the screw. Powder-coated with RAL 7035 light grey-coloured polyester resins.
| Code | Code with Euroclipper | Frame size (mm) | Clear opening (mm) | Weight (kg) |
|---|---|---|---|---|
| 06180240 | 06180240E | 240 x 240 | 200 x 200 | 1,62 |
| 06180340 | 06180340E | 340 x 340 | 300 x 300 | 2,54 |
| 06180440 | 06180440E | 440 x 440 | 400 x 400 | 3,62 |
| 06180540 | 06180540E | 540 x 540 | 500 x 500 | 5,45 |
| 06180640 | 06180640E | 640 x 640 | 600 x 600 | 7,06 |
| All manhole covers are empty formworks which are then filled with material; this material has a fundamental influence on their capacity. The capacity guarantee can therefore only be provided by the fitter who is responsible for the material used to fill the manhole. Baldassar Gratings underlines the good practice of filling manhole covers with at least 2-3 cm of suitably reinforced concrete. | ||||
Euroclipper® handle: a patented lifting system for Baldassar manhole covers (code: 06250050 – 06250080)
Steel screws with a PVC pin to life the manhole covers (code: 06260001 -06260002 – 06260003)
Handle for lifting manhole covers with pre-drilled side holes (code: 06270001)
Euroclipper® attachment (code: ESPEURO50 – ESPEURO80)
