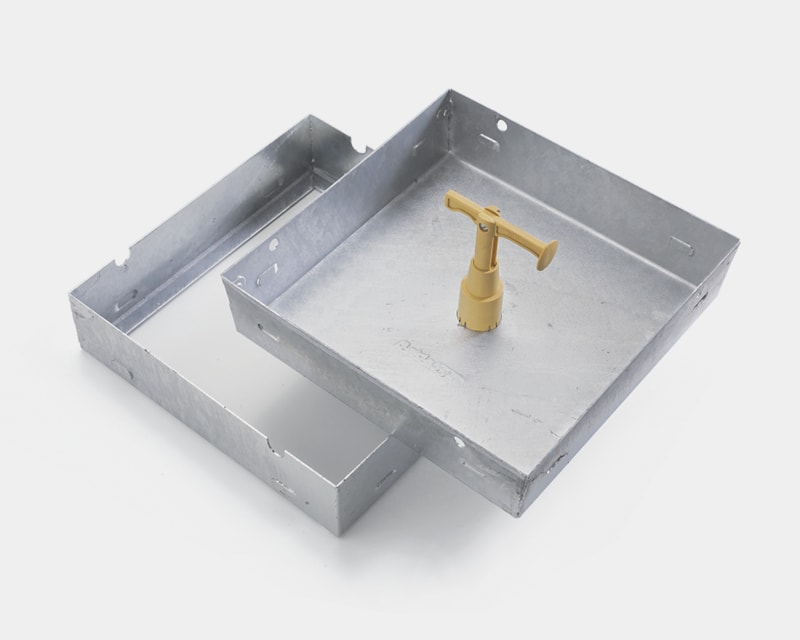

Road manhole cover (H 80) with the EUROCLIPPER® handle
20/10 thick hot dip-galvanised sheet metal manhole cover with a 20/10 thick frame. Supplied with side holes to allow the cover to be lifted and a central hole for lifting via the Euroclipper® handle.
Road Manhole Cover (H 80)
20/10 thick hot dip-galvanised sheet metal manhole cover with a 20/10 thick frame and side holes to allow the cover to be lifted.
Code | Code with Euroclipper | Frame size (mm) | Clear opening (mm) | Weight (kg) |
---|---|---|---|---|
06210240 | 06210240E | 240 x 240 | 190 x 190 | 3,00 |
06210300 | 06210300E | 300 x 300 | 250 x 250 | 3,97 |
06210340 | 06210340E | 340 x 340 | 290 x 290 | 5,10 |
06210400 | 06210400E | 400 x 400 | 350 x 350 | 5,57 |
06210440 | 06210440E | 440 x 440 | 390 x 390 | 6,97 |
06210500 | 06210500E | 500 x 500 | 450 x 450 | 8,54 |
06210540 | 06210540E | 540 x 540 | 490 x 490 | 9,80 |
06210640 | 06210640E | 640 x 640 | 590 x 590 | 12,55 |
06210740* | 06210740E* | 740 x 740 | 690 x 690 | 16,30 |
*Equipped with 2 holes or Euroclipper handle | ||||
All manhole covers are empty formworks which are then filled with material; this material has a fundamental influence on their capacity. The capacity guarantee can therefore only be provided by the fitter who is responsible for the material used to fill the manhole. Baldassar Gratings underlines the good practice of filling manhole covers with at least 2-3 cm of suitably reinforced concrete. |
Euroclipper® handle: a patented lifting system for Baldassar manhole covers (code: 06250050 – 06250080)
Steel screws with a PVC pin to life the manhole covers (code: 06260001 -06260002 – 06260003)
Handle for lifting manhole covers with pre-drilled side holes (code: 06270001)
Euroclipper® attachment (code: ESPEURO50 – ESPEURO80)
