Drain-Tech 1

• Extruded aluminium profile design with 10 x 25 mm continuous longitudinal inlet slots.
• The aluminium profile is covered with a 15 μm anodised layer which makes the profile durable and corrosion-resistant.
• Application: suitable for outdoor use (garage doors, terraces, car parks).
• The filling thickness is 40/73 mm.
• The joint is pre-assembled as standard to guarantee a perfect alignment, quick assembly and watertight properties.
• Accessories: inspection lids with an inspection chamber, endpieces with/without a drain and internal/external corner pieces.
• Several lengths are available.

DRAIN-TECH – H 83

Standard Dimensions

codeL mmH mmweight (kg)
03830500500831,60
038310001000833,12

Class 2 maximum capacity (car) when filled with at least 4 cm of concrete.

DRAIN-TECH – H 133

Standard Dimensions

codeL mmH mmweight (kg)
033305005001332.06
0333100010001334.12

Class 2 maximum capacity (car) when filled with at least 4 cm of concrete.

External Corner Piece H 83 – Code: 03830001 H 133 – Code: 03330001

Internal Corner Piece H 83 – Code: 03830002 H 133 – Code: 0333002

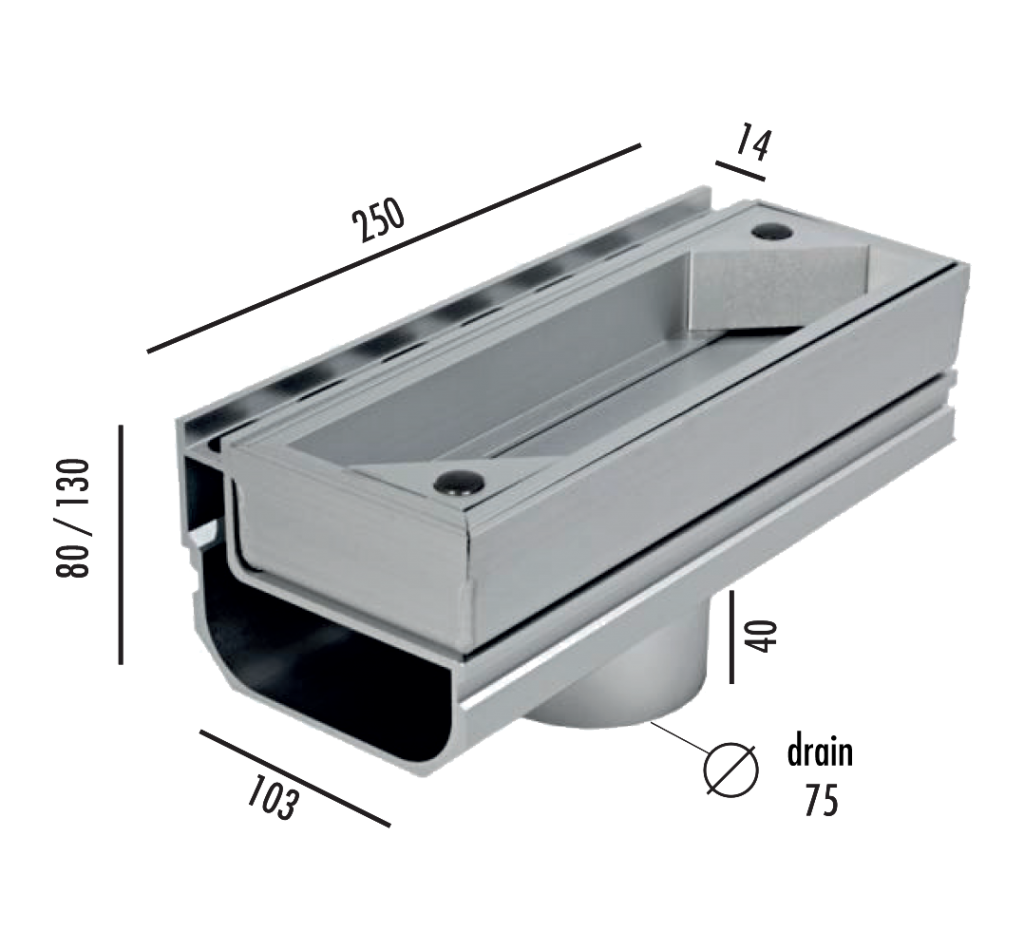

Inspection Chamber H 83 – Code: 03830003 H 133 – Code: 03330003

Inspection chamber

Side-Drain Inspection Chamber H 83 – Code: 03830004 H 133 – Code: 03330004

Vertical-Drain Inspection Chamber H 83 – Code: 03830005 H 133 – Code: 03330005

Joint H 83 – Code: 03830007 H 133 – Code: 03330007

Joint

End Piece with RH/LH Drain H 83 – Code: 03830006D H 133 – Code: 03330006D H 83 – Code: 03830006S H 133 – Code: 03330006S

RH/LH Closed End Piece H 83 – Code: 03830008D H133 – Code: 03330008D H 83 – Code: 03830008S H 133 – Code: 03330008S

Closed end piece
