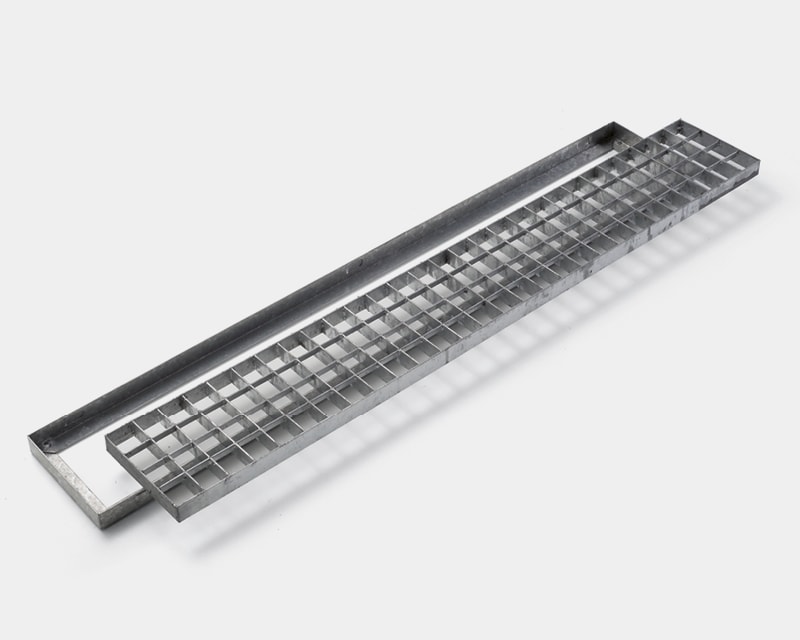

Pressed grating with a 33×33 mesh, 25×2 bearing bar, 10×2 hot dip-galvanised cross bar and 30 mm-high, 15/10-thick pre-galvanised L-shaped sheet metal frame.
Code | Frame size (mm) | Clear opening (mm) | Weight (kg) | Load class |
---|---|---|---|---|
05130245* | 245 x 245 | 200 x 200 | 1,60 | Pedestrian |
05130345* | 345 x 345 | 300 x 300 | 2,90 | Pedestrian |
05130445* | 445 x 445 | 400 x 400 | 4,50 | Pedestrian |
05130545* | 545 x 545 | 500 x 500 | 6,36 | Pedestrian |
05130645* | 645 x 645 | 600 x 600 | 9,40 | Pedestrian |
05131160* | 1010 x 160 | 965 x 115 | 4,85 | Truck |
05131210* | 1010 x 210 | 965 x 165 | 6,10 | Car |
05131260* | 1010 x 260 | 965 x 215 | 6,97 | Pedestrian |
05131280* | 1010 x 280 | 965 x 280 | 7,15 | Pedestrian |
05131310* | 1010 x 310 | 965 x 265 | 7,65 | Pedestrian |
05131410* | 1010 x 410 | 965 x 365 | 9,60 | Pedestrian |
05131510* | 1010 x 510 | 965 x 465 | 11,70 | Pedestrian |
05131610* | 1010 x 610 | 965 x 565 | 13,64 | Pedestrian |
05134210* | 485x210 | 440x165 | 3,18 | Car |
05134260* | 485x260 | 440x215 | 3,66 | Pedestrian |
05134310* | 485x310 | 440x265 | 3,95 | Pedestrian |
*Available while stock lasts[:] |
