Olimpia
Olimpia is an electro-welded grating modular fence model designed for sports facilities.
Olimpia is an electro-welded grating modular fence model designed for sports facilities. The fence consists of 124 x 50 / 100 mm mesh and a 25 x 3 mm bearing bar, comprising horizontal bearing bars with a rectangular cross-section and connecting round cross-beam bars. The side band – connected via wire welding – ensures a high resistance and long-lasting quality.
Item specifications
The Baldassar Olimpia fence model consists of electro-welded grating panels in S235JR (UNI EN 10025) steel, comprising: a 124 x 50 mm mesh lower panel, horizontal bearing bars with a 25 x 3 mm cross-section, vertical cross wire with a 5 mm diameter and a steel side banding bar with a 25 x 3 mm cross-section which is hand wire-welded, complete with an upper panel connection system. 124 x 100 mm mesh upper panel, horizontal bearing bars with a 25 x 3 mm cross-section, vertical round crosswire with a 5 mm diameter and a steel side banding bar with a 25 x 3 mm diameter that has been manually wire-welded to increase the product’s resistance. The model boasts a stiffening tube which is welded directly to the top of the panel and a lower panel connection system. It comes with posts made of IPE 100 profiles and M10 round head bolts with a shear lock nut. All the elements are hot dip-galvanised in accordance with the UNI EN ISO 1461 standard.
Material
S 235 JR (UNI EN 10025:1995) steel
Coating
A polyester resin powder coating – suitable for outdoor use – is applied on the hot dip-galvanised material post-processing.
Standard surface treatment
Hot dip-galvanised post-processing in accordance with UNI ISO 1461:2009
Available RAL colours
6005 |
6029 |
9010 |
9005 |
5010 |
1023 |
3002 |
7016 |
Accessories and optional extras
- M10 round head stainless steel bolts with a shear lock nut
| Panel | Post | Screw-on post | Concrete-in post | |||
|---|---|---|---|---|---|---|
| H2 height (mm) | L=1990 weight (kg/each) | Section (mm) | H3 height (mm) | Weight (kg/each) | H1 height (mm) | Weight (kg/each) |
| 877 | 16,10 | IPE 100 | 2400 | 25,40 | 2750 | 23,5 |
| 1417 | 27,30 | IPE 100 | 2400 | 25,40 | 2750 | 23,5 |
Posts
The posts for the Olimpia fence model are made from an IPE 100 profile. They are available in a screw-in or screw-on version.
- + Description
-
Olimpia
Olimpia is an electro-welded grating modular fence model designed for sports facilities.
Olimpia is an electro-welded grating modular fence model designed for sports facilities. The fence consists of 124 x 50 / 100 mm mesh and a 25 x 3 mm bearing bar, comprising horizontal bearing bars with a rectangular cross-section and connecting round cross-beam bars. The side band – connected via wire welding – ensures a high resistance and long-lasting quality.
Item specifications
The Baldassar Olimpia fence model consists of electro-welded grating panels in S235JR (UNI EN 10025) steel, comprising: a 124 x 50 mm mesh lower panel, horizontal bearing bars with a 25 x 3 mm cross-section, vertical cross wire with a 5 mm diameter and a steel side banding bar with a 25 x 3 mm cross-section which is hand wire-welded, complete with an upper panel connection system. 124 x 100 mm mesh upper panel, horizontal bearing bars with a 25 x 3 mm cross-section, vertical round crosswire with a 5 mm diameter and a steel side banding bar with a 25 x 3 mm diameter that has been manually wire-welded to increase the product’s resistance. The model boasts a stiffening tube which is welded directly to the top of the panel and a lower panel connection system. It comes with posts made of IPE 100 profiles and M10 round head bolts with a shear lock nut. All the elements are hot dip-galvanised in accordance with the UNI EN ISO 1461 standard.
- + Characteristics
-
Material
S 235 JR (UNI EN 10025:1995) steel
Coating
A polyester resin powder coating – suitable for outdoor use – is applied on the hot dip-galvanised material post-processing.
Standard surface treatment
Hot dip-galvanised post-processing in accordance with UNI ISO 1461:2009
Available RAL colours
6005
6029
9010
9005
5010
1023
3002
7016
Accessories and optional extras
- M10 round head stainless steel bolts with a shear lock nut
- + Technical data
-

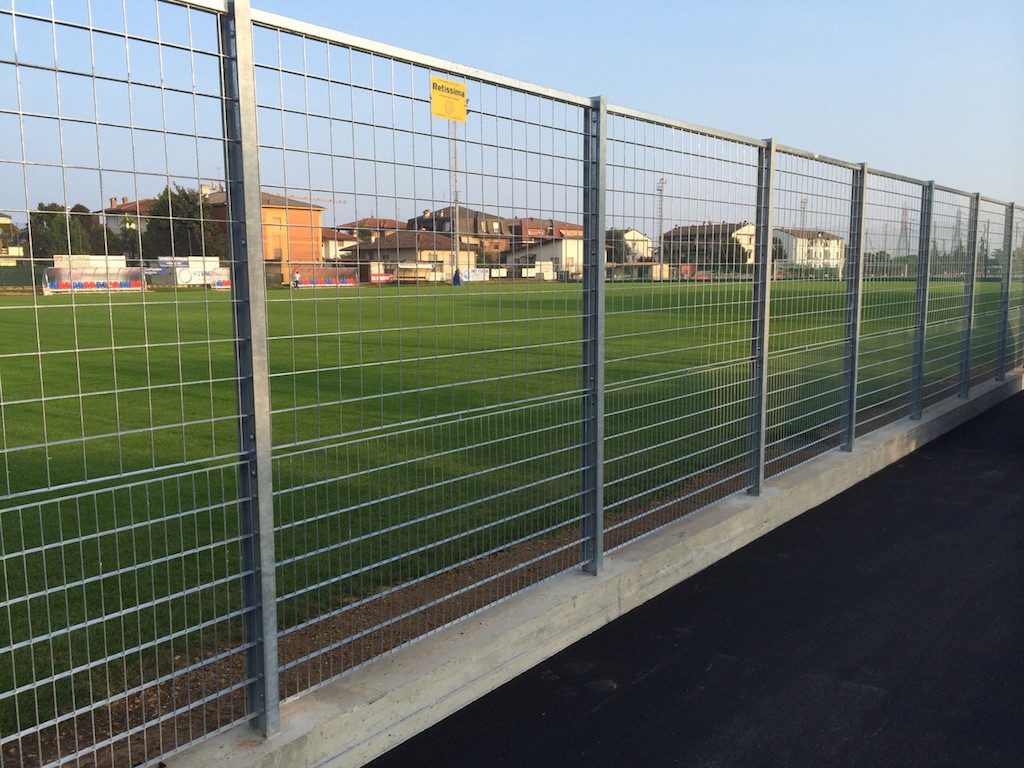

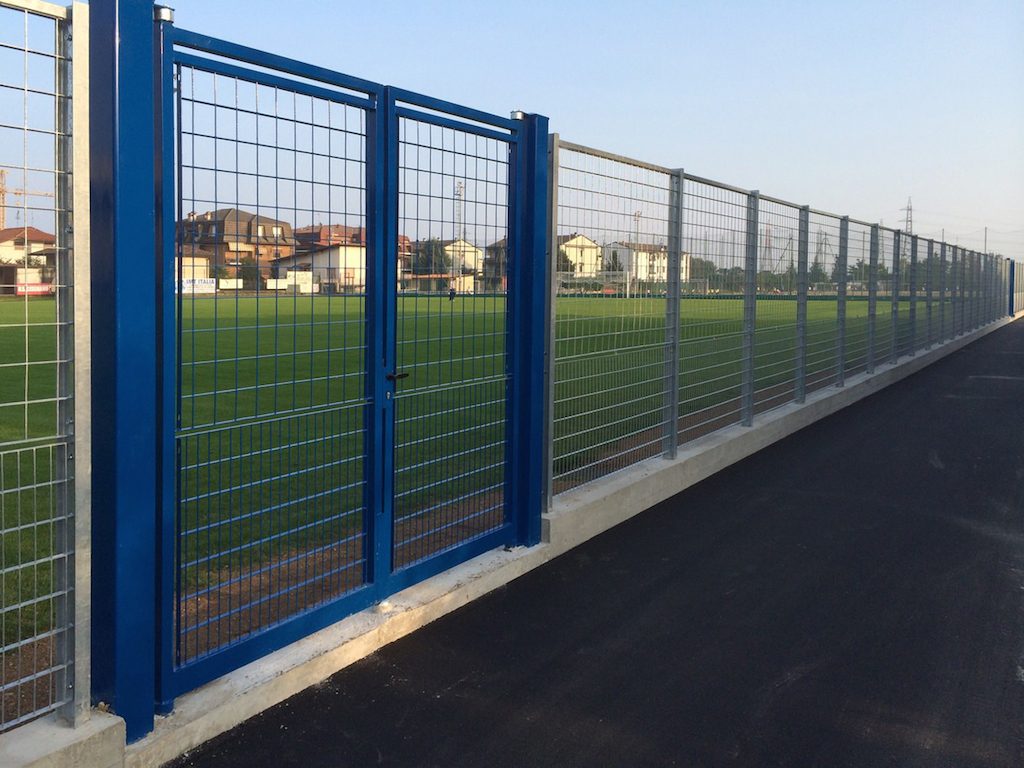

Panel Post Screw-on post Concrete-in post H2 height (mm) L=1990 weight (kg/each) Section (mm) H3 height (mm) Weight (kg/each) H1 height (mm) Weight (kg/each) 877 16,10 IPE 100 2400 25,40 2750 23,5 1417 27,30 IPE 100 2400 25,40 2750 23,5 - + Completed projects
-
- + Accessories
-
Posts
The posts for the Olimpia fence model are made from an IPE 100 profile. They are available in a screw-in or screw-on version.
