Horizon Vision

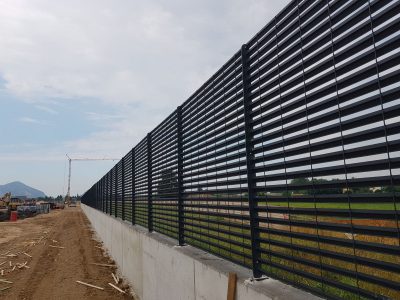

Combine elegance and privacy in a design frame with Horizon Vision Horizon Vision is the modular fence with a modern and essential line that gives a design allure to the surrounding perimeter. The Horizon Vision fence model consists of electro-welded grating panels. It is characterised by the special horizontal texture of the bearing bars and the sunbllind profile, which leave enough space between the bars, making it particularly suitable for protecting and enhancing design environments and green areas with an excellent architecture. Item specifications
The Baldassar Horizon Vision fence model consists of electro-welded grating panels in S235JR (UNI EN 10025) steel with a 80 x 266 mm mesh, Z-shaped horizontal bearing bars, vertical cross wire with a 5 mm diameter and a steel side banding bar with a 40 x 3 mm cross-section, hand wire-welded to increase the product’s quality. It comes with steel posts comprising a 80 x 8 mm cross-section bar, in addition to M8 x 30 stainless steel bolts, hot dip-galvanised in accordance with the UNI EN ISO 1461 standard.
Material
S 235 JR (UNI EN 10025:1995) steel
Coating
A polyester resin powder coating – suitable for outdoor use – is applied on the hot dip-galvanised material post-processing.
Standard surface treatment
Hot dip-galvanised post-processing in accordance with UNI ISO 1461:2009
Available RAL colours
6005 |
6029 |
9010 |
9005 |
5010 |
1023 |
3002 |
7016 |
Accessories and optional extras
- M8 x 30 round head stainless steel bolt with lock nut
- M8 x 30 stainless steel bolt with hex nut
- Other posts
Panel | Post | Screw-on post | Concrete-in post | |||
---|---|---|---|---|---|---|
H2 height (mm) | L=1990 weight (kg/each) | Section (mm) | H3 height (mm) | Weight (kg/each) | H1 height (mm) | Weight (kg/each) |
930 | 21,50 | 80 x 8 | 960 | 5,97 | 1180 | 6,28 |
1250 | 28,80 | 80 x 8 | 1280 | 7,67 | 1500 | 8,00 |
1570 | 35,60 | 80 x 8 | 1600 | 9,37 | 1780 | 9,60 |
1970 | 44,20 | 80 x 8 | 2000* | 12,36 | 2190 | 11,80 |
*With a 4-hole cover plate |
Fixing elements
Round head bolt (optional) with lock nut
M8 x 30 round head bolt (optional) with lock nut.
Finish: galvanised/stainless steel.
Bolt (standard) with hex nut
M8 x 30 bolt (standard) with hex nut.
Finish: galvanised/stainless steel.
Posts
Screw-on post
Screw-on standard and end post with a 60 x 7 or 80 x 8 mm cross-section.
Material: S 235 JR (UNI EN 10025:1995) steel
Surface treatment: hot dip-galvanised post-processing.
Coating: a polyester resin powder coating – suitable for outdoor use – is applied on the galvanised material.
Screw-on corner post
Screw-on standard corner post with a 60 x 60 x 6 or 80 x 80 x 8 mm cross-section.
Material: S 235 JR (UNI EN 10025:1995) steel
Surface treatment: hot dip-galvanised post-processing.
Coating: a polyester resin powder coating – suitable for outdoor use – is applied on the galvanised material.
Screw-in post
Screw-in standard post with a 60 x 7 or 80 x 8 mm cross-section.
Material: S 235 JR (UNI EN 10025:1995) steel
Surface treatment: hot dip-galvanised post-processing.
Coating: a polyester resin powder coating – suitable for outdoor use – is applied on the galvanised material.
Screw-in corner post
Screw-in standard corner post with a 60 x 60 x 6 or 80 x 80 x 8 mm cross-section.
Material: S 235 JR (UNI EN 10025:1995) steel
Surface treatment: hot dip-galvanised post-processing.
Coating: a polyester resin powder coating – suitable for outdoor use – is applied on the galvanised material.
