Infinity®
Due to its elegant, minimalist design, Infinity® can easily be adapted to various architectural styles.
The distance between the vertical profiles has been designed to create a window between the internal and external space, whilst protecting and enhancing the building’s facade. The fence is produced by means of electro-welding technology – without a filler material – by fusing special C-shaped profiles to 3 mm-thick horizontal bars. It is hot dip-galvanised in accordance with the UNI EN ISO 1461 standard and can then, if necessary, be coated with a thermosetting powder suitable for outdoor use.
Item specifications
The Baldassar Infinity® fence model consists of C-shaped vertical profiles with a 20 x 37 x 20 mm cross-section and square or curved finish, electro-welded without filler materials to 2 pairs of robust horizontal bars with a 30 x 3 mm cross-section. Fitted with square posts with a 40 x 40 mm or 50 x 50 mm cross-section with a special panel fixing system, complete with bolts and dome nuts. Hot dip-galvanised post-processing in accordance with the UNI EN ISO 1461 standard, then brushed and coated in a micaceous black-coloured thermosetting powder, suitable for outdoor use.
Material
S 235 JR (UNI EN 10025:1995) steel
Coating
A polyester resin powder coating – suitable for outdoor use – is applied on the hot dip-galvanised material post-processing.
Standard surface treatment
Hot dip-galvanised post-processing
UNI EN ISO 1461:1999
Available RAL colours
- Standard colours:
 ING 01 |
- Colours available upon request:
6005 |
6029 |
9010 |
9005 |
5010 |
1023 |
3002 |
7016 |
Accessories and optional extras
- Wing locking bracket with a painted steel finish
- Upper partition bracket
- M8 x 55 and M8 x 65* round head bolt with lock nut
- M8 x 55 and M8 x 65* round head bolt with stainless steel or galvanised dome nut
*for 1430 and 1724 panel posts

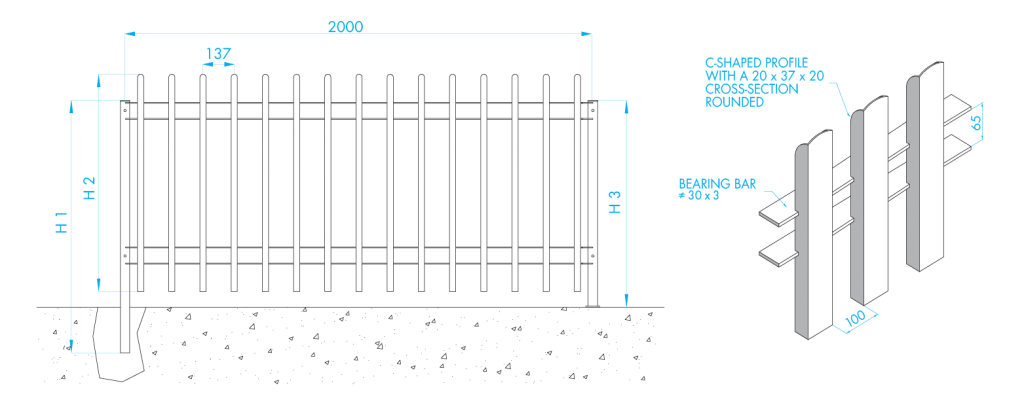

| Panel | Post | Screw-on post | Concrete-in post | |||
|---|---|---|---|---|---|---|
| H2 height (mm) | L=1998 weight (kg/each) | Section (mm) | H3 height (mm) | Weight (kg/each) | H1 height (mm) | Weight (kg/each) |
| 930 | 18,70 | 40 x 40 | 890 | 2,80 | 1070 | 2,80 |
| 1200 | 22,50 | 40 x 40 | 1150 | 3,50 | 1340 | 3,50 |
| 1430 | 25,80 | 50 x 50 | 1390 | 4,90 | 1600 | 5,00 |
| 1724* | 29,90 | 50 x 50 | 1660 | 5,70 | 1860 | 5,80 |
| Available on request | ||||||
6005 |
6029 |
9010 |
9005 |
5010 |
1023 |
3002 |
7016 |
ING 01 |
Fixing elements
Round head bolt with dome nut
M8 x 55 and M8 x 65* round head bolt with dome nut.
*for 1430 and 1724 panel posts
Finish: stainless steel
Round head bolt with lock nut
M8 x 55 and M8 x 65* round head bolt (optional) with lock nut.
*for 1430 and 1724 panel posts
Finish: stainless steel.
Fixing kit
- Locking nut
- Upper partition bracket
- Wing locking bracket
- Connecting bolt
Posts
Screw-on post
Screw-on post with a 40 x 40 or 50 x 50 mm cross-section.
Material: S 235 JR (UNI EN 10025:1995) steel
Surface treatment: hot dip-galvanised post-processing.
Coating: a polyester resin powder coating – suitable for outdoor use – is applied on the galvanised material.
Screw-in post
Screw-in post with a 40 x 40 or 50 x 50 mm cross-section.
Material: S 235 JR (UNI EN 10025:1995) steel
Surface treatment: hot dip-galvanised post-processing.
Coating: a polyester resin powder coating – suitable for outdoor use – is applied on the galvanised material.
