Ribes®
Give your home a clean, simple line with this discreet design that’s fast and easy to install!
Its clean and simple line is enhanced by the decorative tapered sphere finials on the top. Ribes® is a fence model that is surprisingly well suited for both modern and classic architectural styles. It is produced using electro-welding and complete penetration technology – without a filler material – by fusing 4 mm-thick robust bars to 12 mm-diameter forge-shaped rounds.
Item specifications
The Baldassar Ribes® fence model comprises 2 pairs of horizontal bars with a 30 x 4 mm cross-section and 12 mm-diameter forged vertical rounds with tapered sphere finials, which are full-penetration electro-welded without a filler material. Fitted with square posts with a 40 x 40 mm or 50 x 50 mm cross-section and a special panel fixing system, complete with bolts and dome nuts. Hot dip-galvanised post-processing in accordance with the UNI EN ISO 1461 standard, then brushed and powder-coated in a micaceous black colour.
Material
S 235 JR (UNI EN 10025:1995) steel
Coating
A polyester resin powder coating – suitable for outdoor use – is applied on the hot dip-galvanised material post-processing.
Standard surface treatment
Hot dip-galvanised post-processing
UNI EN ISO 1461:2009
Available RAL colours
- Standard colours:
 ING 01 |
- Colours available upon request:
6005 |
6029 |
9010 |
9005 |
5010 |
1023 |
3002 |
7016 |
Accessories and optional extras
- Wing locking bracket with a painted steel finish
- Upper partition bracket
- M8 x 55 and M8 x 65* round head bolt with lock nut
- M8 x 55 and M8 x 65* round head bolt with stainless steel or galvanised dome nut
*for 1430 panel posts

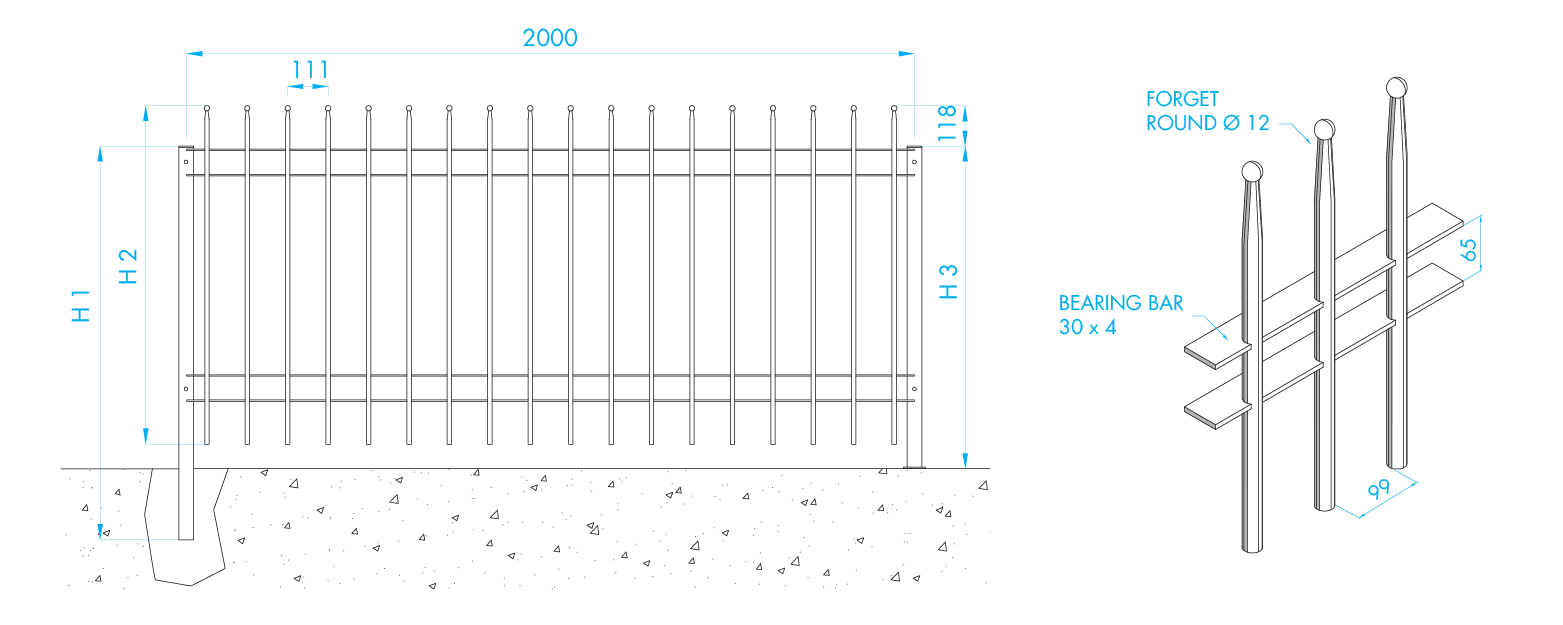

| Panel | Post | Screw-on post | Concrete-in post | |||
|---|---|---|---|---|---|---|
| H2 height (mm) | L=1998 weight (kg/each) | Section (mm) | H3 height (mm) | Weight (kg/each) | H1 height (mm) | Eeight (kg/each) |
| 800 | 20,00 | 40 x 40 | 760 | 2,50 | 940 | 2,40 |
| 930 | 24,00 | 40 x 40 | 890 | 2,80 | 1070 | 2,80 |
| 1200 | 28,00 | 40 x 40 | 1150 | 3,50 | 1340 | 3,50 |
| 1430 | 32,50 | 50 x 50 | 1390 | 4,90 | 1600 | 5,00 |
Colors on request
6005 |
6029 |
9010 |
9005 |
5010 |
1023 |
3002 |
7016 |
Standard colors
ING 01 |
Fixing elements
Round head bolt with dome nut
M8 x 55 and M8 x 65* round head bolt with dome nut.
*for 1430 panel posts
Finish: stainless steel
Round head bolt with lock nut
M8 x 55 and M8 x 65* round head bolt (optional) with lock nut.
*for 1430 panel posts
Finish: stainless steel.
Fixing kit
- Locking nut
- Upper partition bracket
- Wing locking bracket
- Connecting bolt
Posts
Screw-on post
Screw-on post with a 40 x 40 or 50 x 50 mm cross-section.
Material: S 235 JR (UNI EN 10025:1995) steel
Surface treatment: hot dip-galvanised post-processing.
Coating: a polyester resin powder coating – suitable for outdoor use – is applied on the galvanised material.
Screw-in post
Screw-in post with a 40 x 40 or 50 x 50 mm cross-section.
Material: S 235 JR (UNI EN 10025:1995) steel
Surface treatment: hot dip-galvanised post-processing.
Coating: a polyester resin powder coating – suitable for outdoor use – is applied on the galvanised material.
