Baldablock is the monobloc gate model by Baldassar
- Less manpower: installs in just 30 minutes.
- Easy: pre-drilled for feeding through the electric cables and manual and/or motorised opening (only the double-leaf model).
- Reduced cost: no concrete pillars need to be built.
- Customisable: a wide range of infill panels are available.
- Less engagements: by choosing a standard product, the on-site inspections by various professionals are unnecessary.
- Less damage: the monobloc is structural failure-resistant, therefore, guaranteeing a longer service life and less automation and mechanical part maintenance.
- Quality: the hot-dip galvanised and/or powder-coated structure is measured to size.
- Guarantee: the product is certified with a quality guarantee and complies with CE regulations.
- Long-lasting: our components are chosen with the utmost care.
- Service: all Baldablock models are held in stock.
Baldablock
Quality and experience are the guidelines of the Baldassar monobloc gate range.
Its easy on-site installation is one of the fundamental elements of our entire range.
As a result of clear objectives and our analytical monitoring of the market, we are able to invent solutions that save time and effort for the retailer and the end user alike. We draw inspiration from the range of Baldassar products, in order to create customised details for every single piece. Our 30 years of experience has taught us to always choose the best materials and techniques. The coloured finishes offer a ready-to-install product that is suitable for all aesthetic needs.
The importance of the CE marking
The Baldablock line of gates is CE marked and complies with the safety requirements defined by the specific European regulation. This regulation defines the procedures for evaluating industrial products for safety purposes and provides for a CE mark to be affixed which attests to their compliance with the essential requirements. CE stands for “Conformité Européen” (French for European Conformity) and the CE symbol indicates that the products comply with the essential directive and regulation requirements regarding safety, public health, consumer protection, etc. Each gate is supplied with the relative use and maintenance manual, provided for by the CE legislation.
Available RAL colours
- Standard colours:
ING 01 |
- Colours available upon request
6005 |
6029 |
9010 |
9005 |
5010 |
1023 |
3002 |
7016 |
Item specifications

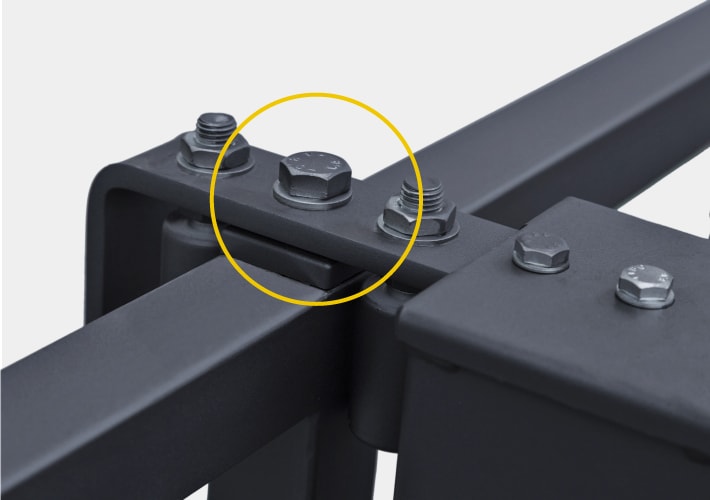

The CE-marked BALDABLOCK gate model comes complete and ready for installation. The product boasts the following characteristics: Material: excluding the accessories and fixing elements (which are normally made of stainless steel), the material used is S235JR steel (UNI EN 10025:2005), hot dip-galvanised in accordance with the UNI EN ISO 1461 standard and COATED with thermosetting powders in a colour from the RAL range. STRUCTURE: it consists of ultra-resistant and durable square or rectangular tubes in the sizes and thicknesses suitable for the required dimensions. PANEL: comprised of the same elements as the relative fence, if any. It can be made of electro-welded grating, perforated sheet metal, tube profiles or other (among the available panels). SUPPORTS: the support can be made with suitable tube columns or with wall supports; either way, they will always be in steel and boast the mentioned characteristics. LOCKING SYSTEM: can be manual or electric. ACCESSORIES AND FIXING ELEMENTS: the unified steel bolts and pins are stainless steel as standard.
N.B. The product can be pre-prepared for motorisation or motorised. The automation-related CE certification must be provided by the installer. Once the motorisation has been installed, the certification will be provided by the installer.
H 1500 | 1840 L 3160 | 3560 | 4060 T 3400 | 3800 | 4300
H 1500 | 1840 L 3160 | 3560 | 4060 T 3400 | 3800 | 4300
H 1500 | 1840 L 3160 | 3560 | 4060
L² 1140 T 4660 | 5060 | 5560
H 1500 | 1840
L 1140
T 1380

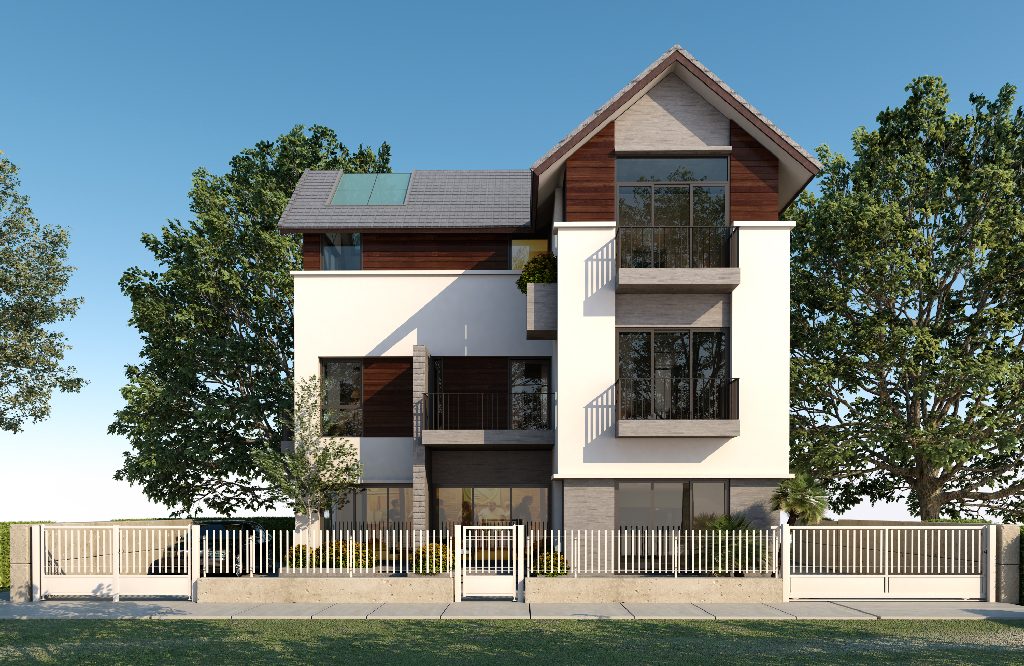

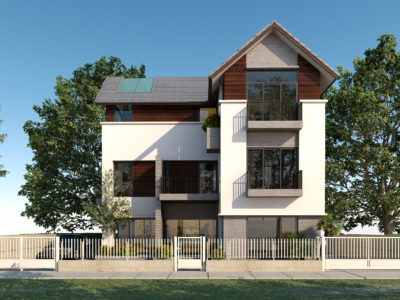

Baldablock render with Infinity® infill panelling.

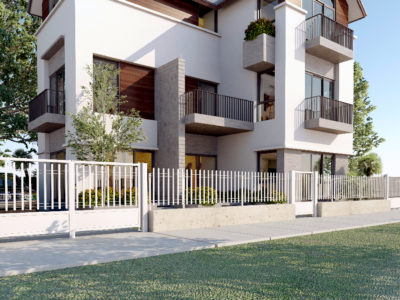

Baldablock render with Infinity® infill panelling.
Supplied as standard

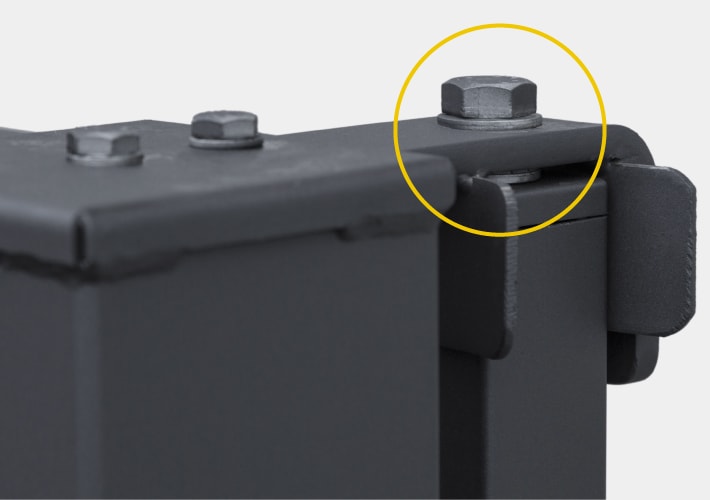

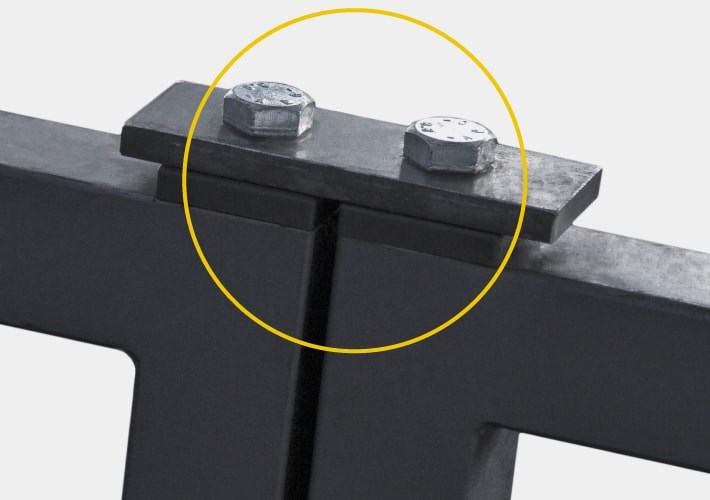

Leaf stops
Sliding roller stops
Sliding stopper stops
Optional extras

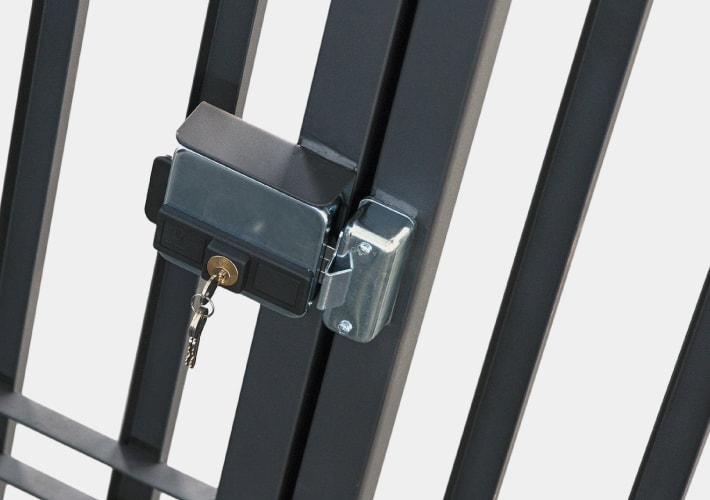

Electric lock

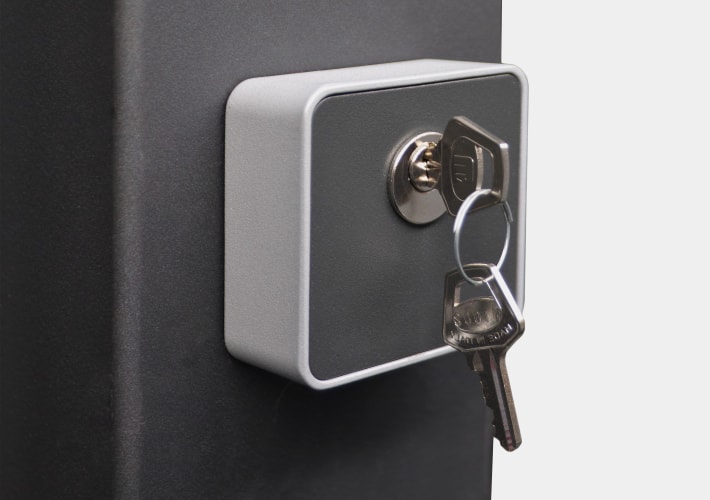

External selector

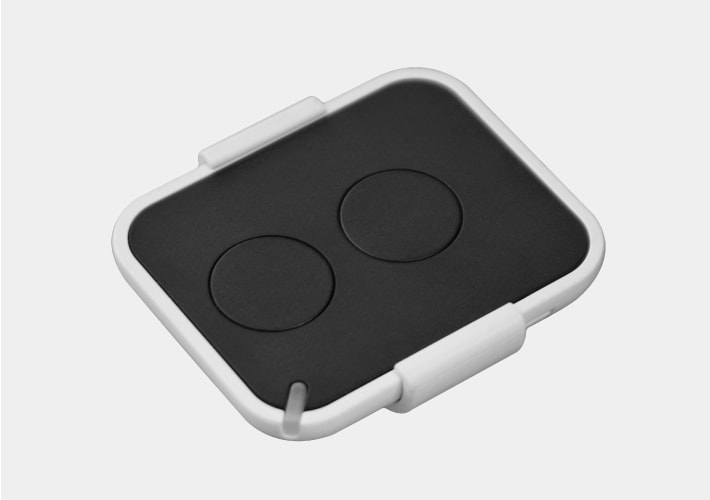

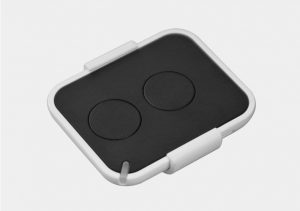

Remote control

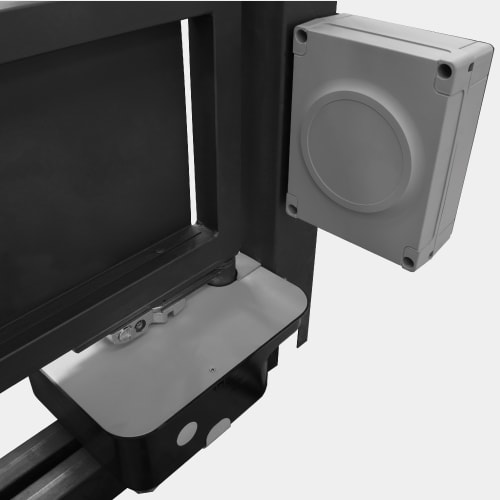

Motor + control unit
External photocell
Internal photocell

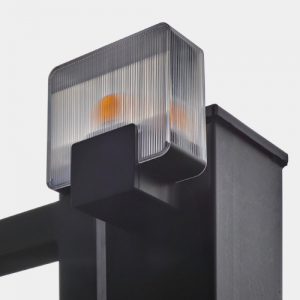

External flashing indicator light
Cisar
Cisar |
Conisar |
Free |
Horizon |
Infinity® |
Multisar |
Ovalis |
Quadra |
Quasar |
Regular |
Ribes® |
Vega |
- + Description
-
Baldablock is the monobloc gate model by Baldassar
- Less manpower: installs in just 30 minutes.
- Easy: pre-drilled for feeding through the electric cables and manual and/or motorised opening (only the double-leaf model).
- Reduced cost: no concrete pillars need to be built.
- Customisable: a wide range of infill panels are available.
- Less engagements: by choosing a standard product, the on-site inspections by various professionals are unnecessary.
- Less damage: the monobloc is structural failure-resistant, therefore, guaranteeing a longer service life and less automation and mechanical part maintenance.
- Quality: the hot-dip galvanised and/or powder-coated structure is measured to size.
- Guarantee: the product is certified with a quality guarantee and complies with CE regulations.
- Long-lasting: our components are chosen with the utmost care.
- Service: all Baldablock models are held in stock.
- + Characteristics
-
Baldablock
Quality and experience are the guidelines of the Baldassar monobloc gate range.
Its easy on-site installation is one of the fundamental elements of our entire range.
As a result of clear objectives and our analytical monitoring of the market, we are able to invent solutions that save time and effort for the retailer and the end user alike. We draw inspiration from the range of Baldassar products, in order to create customised details for every single piece. Our 30 years of experience has taught us to always choose the best materials and techniques. The coloured finishes offer a ready-to-install product that is suitable for all aesthetic needs.The importance of the CE marking
The Baldablock line of gates is CE marked and complies with the safety requirements defined by the specific European regulation. This regulation defines the procedures for evaluating industrial products for safety purposes and provides for a CE mark to be affixed which attests to their compliance with the essential requirements. CE stands for “Conformité Européen” (French for European Conformity) and the CE symbol indicates that the products comply with the essential directive and regulation requirements regarding safety, public health, consumer protection, etc. Each gate is supplied with the relative use and maintenance manual, provided for by the CE legislation.
Available RAL colours
- Standard colours:
ING 01 - Colours available upon request
6005
6029
9010
9005
5010
1023
3002
7016
Item specifications
The CE-marked BALDABLOCK gate model comes complete and ready for installation. The product boasts the following characteristics: Material: excluding the accessories and fixing elements (which are normally made of stainless steel), the material used is S235JR steel (UNI EN 10025:2005), hot dip-galvanised in accordance with the UNI EN ISO 1461 standard and COATED with thermosetting powders in a colour from the RAL range. STRUCTURE: it consists of ultra-resistant and durable square or rectangular tubes in the sizes and thicknesses suitable for the required dimensions. PANEL: comprised of the same elements as the relative fence, if any. It can be made of electro-welded grating, perforated sheet metal, tube profiles or other (among the available panels). SUPPORTS: the support can be made with suitable tube columns or with wall supports; either way, they will always be in steel and boast the mentioned characteristics. LOCKING SYSTEM: can be manual or electric. ACCESSORIES AND FIXING ELEMENTS: the unified steel bolts and pins are stainless steel as standard.
N.B. The product can be pre-prepared for motorisation or motorised. The automation-related CE certification must be provided by the installer. Once the motorisation has been installed, the certification will be provided by the installer. - + Technical data
-
Baldablock Double-Leaf Vehicle Gate
H 1500 | 1840 L 3160 | 3560 | 4060 T 3400 | 3800 | 4300

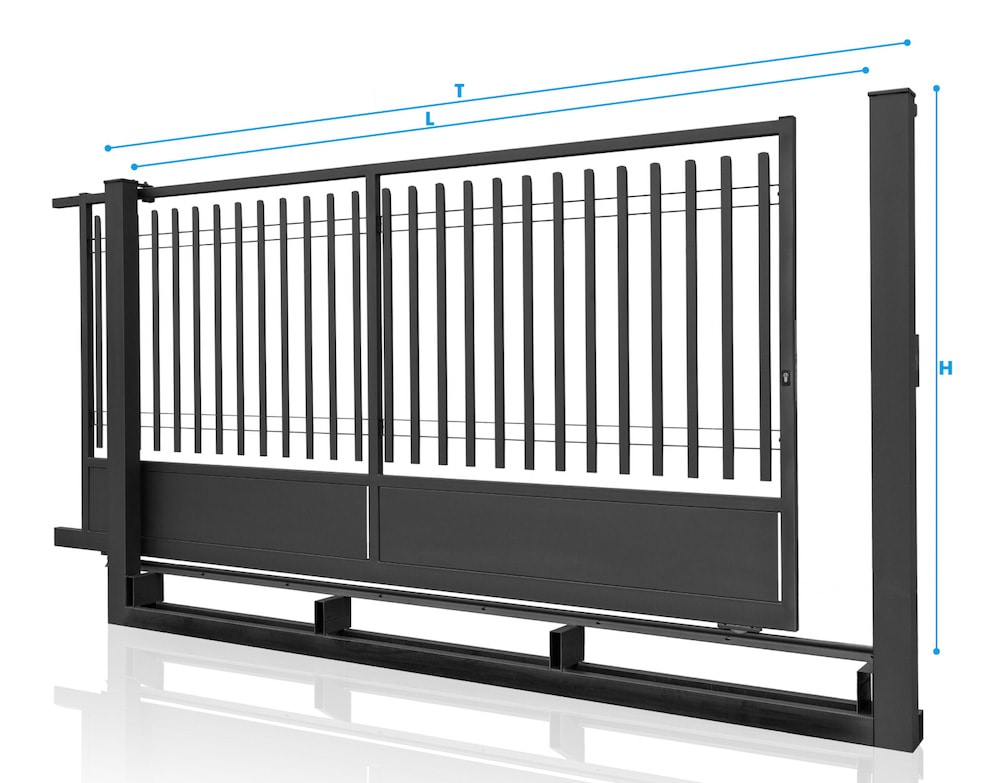

Baldablock Sliding Vehicle GateH 1500 | 1840 L 3160 | 3560 | 4060 T 3400 | 3800 | 4300

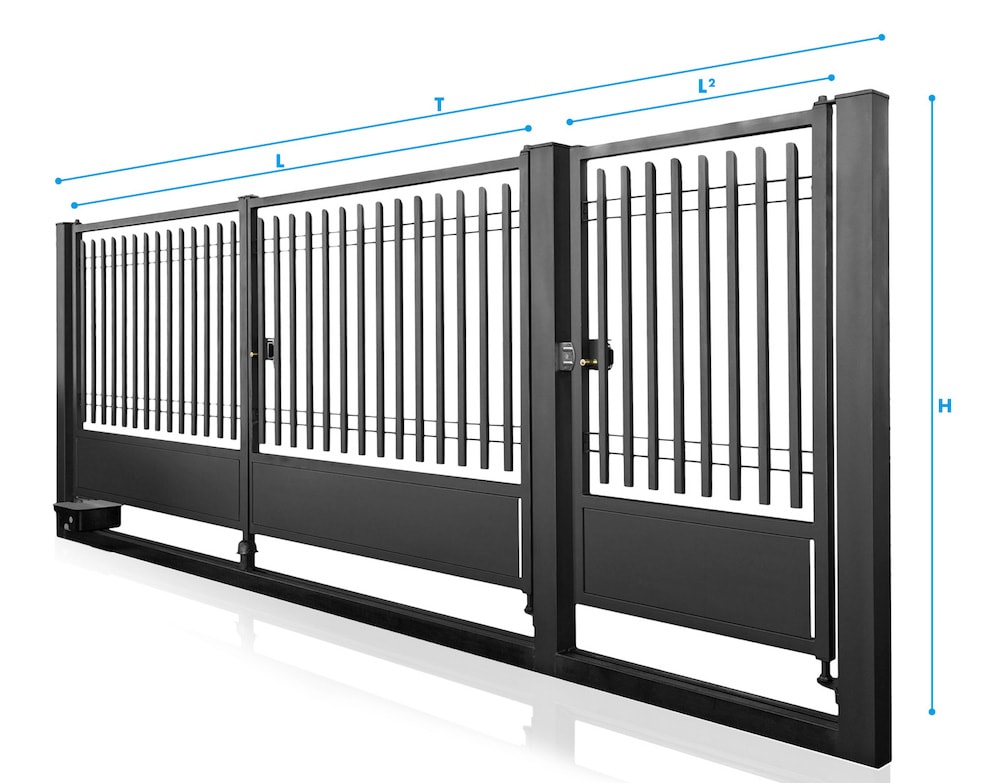

Baldablock Vehicle + Pedestrian GateH 1500 | 1840 L 3160 | 3560 | 4060
L² 1140 T 4660 | 5060 | 5560

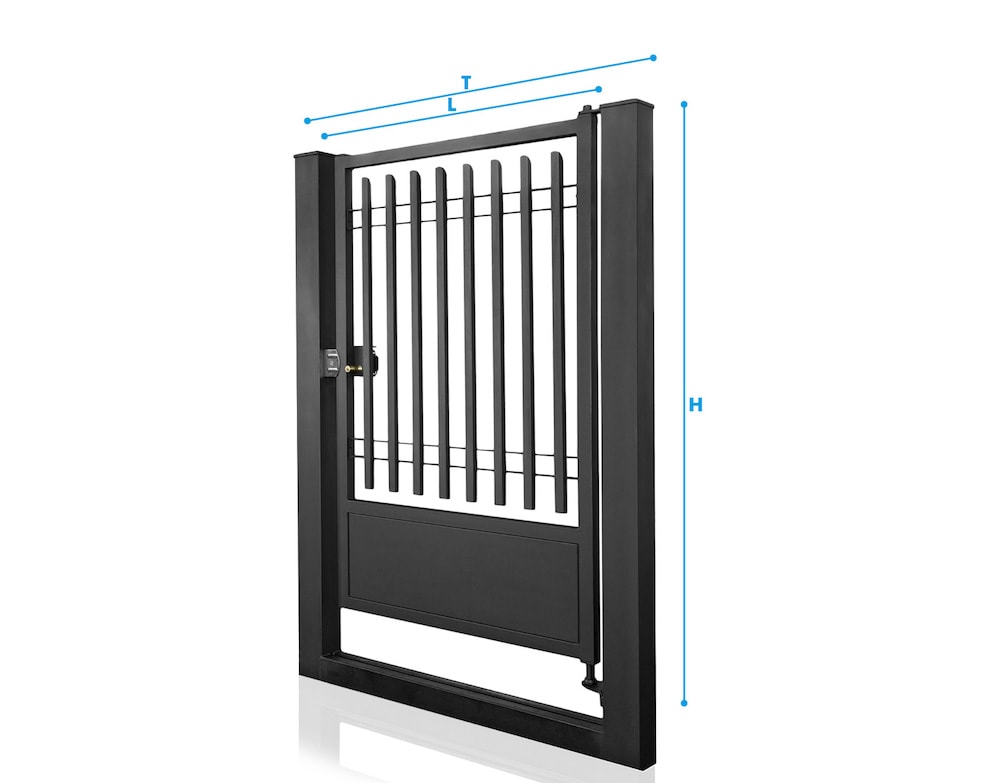

Baldablock Pedestrian GateH 1500 | 1840
L 1140
T 1380 - + Completed projects
-
Baldablock render with Infinity® infill panelling.
Baldablock render with Infinity® infill panelling.
- + Accessories
-
Supplied as standard
Leaf stops
Sliding roller stops
Sliding stopper stops
Optional extras
Electric lock
External selector
Remote control
Motor + control unit

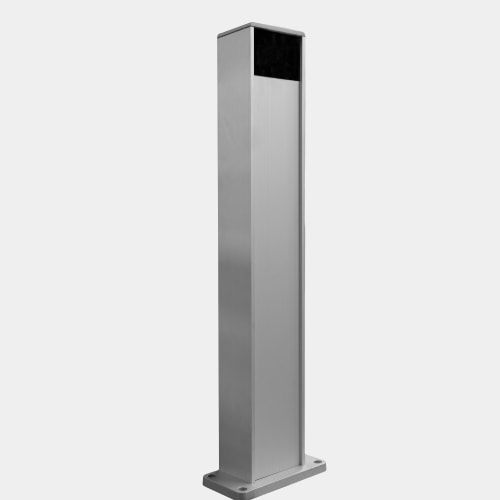

External photocell
Internal photocell
External flashing indicator light
- + Infill Panels
-
Cisar
Cisar
Conisar
Free
Horizon
Infinity®
Multisar
Ovalis
Quadra
Quasar
Regular
Ribes®
Vega
